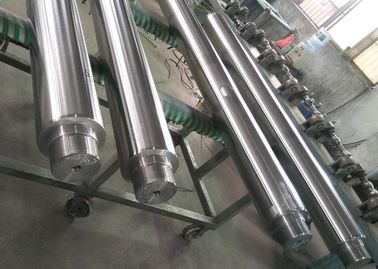

Steel Guide Round Bar With Chrome Plating For Hydraulic Cylinder With High Properties

Steel Guide Round Bar With Chrome Plating For Hydraulic Cylinder With High Properties
Steel Guide Round Bar With Chrome Plating For Hydraulic Cylinder With High Properties Steel Guide Round Bar With Chrome Plating For Hydraulic Cylinder With High Properties

ภาพใหญ่ :  Steel Guide Round Bar With Chrome Plating For Hydraulic Cylinder With High Properties

รายละเอียดสินค้า:

สถานที่กำเนิด: China
ชื่อแบรนด์: HY
ได้รับการรับรอง: ISO9001:2008

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ: 5 tons
ราคา: Negotiation
รายละเอียดการบรรจุ: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
เวลาการส่งมอบ: 30days
เงื่อนไขการชำระเงิน: L/C, T/T
สามารถในการผลิต: 30tons a day
รายละเอียดสินค้า
Name: Steel guide rod Length: 1000mm - 8000mm
Diameter: 6mm - 1000mm Diameter tolerance: ISO f7
Surface hardness: 850-1150 HV (vickers 100g) Surface roughness: Ra≤0.2micron and Rt≤2micro
แสงสูง:

metal guide rod

,

stainless steel guide rod

Stainless Steel Round Bar With Chrome Plating For Hydraulic Cylinder





Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Tensile strength: Not less than 610 N/MM2

3. Yield strength: Not less than 355 N/MM2

4. Advanced inspection apparatus

5. Application: Mining machinery industry, textile / printing industry and so on





Detailed Description

1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10



2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T



3. SUPPLY CONDITION

    Ground  and  chrome plated

4. CHROME THICKNESS

     20 to 30 micron

5. SURFACE ROUGHNESS

     Ra≤0.2 micron and  Rt≤2 micro

6. TOLERANCES ON DIA

    ISO f7 on the diameter

7.OVALITY

    Half of the tolerance ISO f7

8. STRAIGHTNESS

    ≤0.2MM/M

9. SURFACE HARDNESS

    850-1150HV (vickers 100g)

10.COHESION

     No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

    in water)

11 .POROSITY

     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

     Test in natural salt spray according to ASTM B 117-72hours

     Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

      Good

14. PACKING

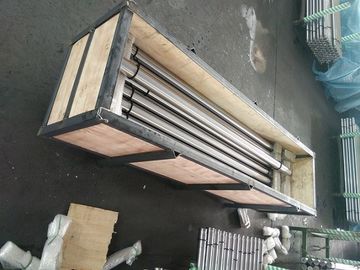

     Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

     All certificate related with material heat treatment and plating is required
